Spur/helical gears

Spur Gears are the simplest type of gears, featuring straight teeth and mounted on parallel shafts. Their main advantages are efficiency, ease of manufacturing, and cost-effectiveness. Because there is no axial thrust, they’re ideal for applications where precise alignment and simple design are needed. They also perform well at moderate speeds and can handle high torque loads.

However, spur gears can be noisy at high speeds due to the sudden engagement of teeth. This impact can lead to more wear and stress on the gear teeth, which limits their use in applications requiring smooth and quiet operation. They’re less suitable for high-speed or high-load conditions where vibration and noise are concerns.

Helical Gears, in contrast, have angled teeth that engage gradually, resulting in smoother and quieter operation. They can transmit more power between non-parallel (or parallel) shafts and operate more efficiently at higher speeds. The gradual engagement reduces wear and improves durability, making them well-suited for automotive, industrial, and high-performance machinery.

The main drawback of helical gears is the axial thrust they generate, which requires additional bearings or thrust washers to absorb the load. They are also more complex and expensive to manufacture compared to spur gears. Despite these factors, their superior performance in demanding applications often outweighs the disadvantages.

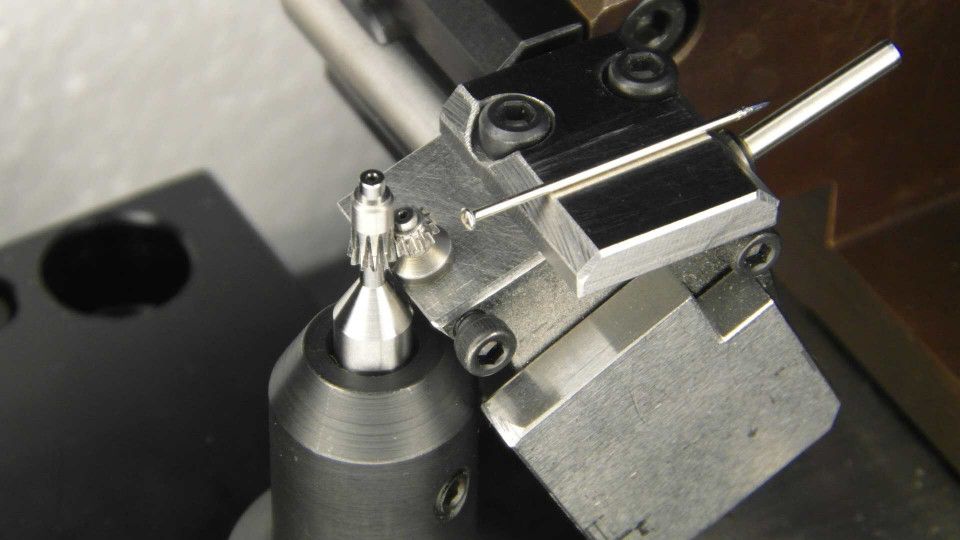

With our single and double flank inspection machines, you can accurately assess the quality of your gears—regardless of their size, shape, or material. Whether you're inspecting precision micro gears as small as 0.5 mm in diameter or large industrial gears up to 1000 mm, our machines are built to handle it all. From steel to plastic, and everything in between, our systems are designed to provide reliable results across the full range of gear types.

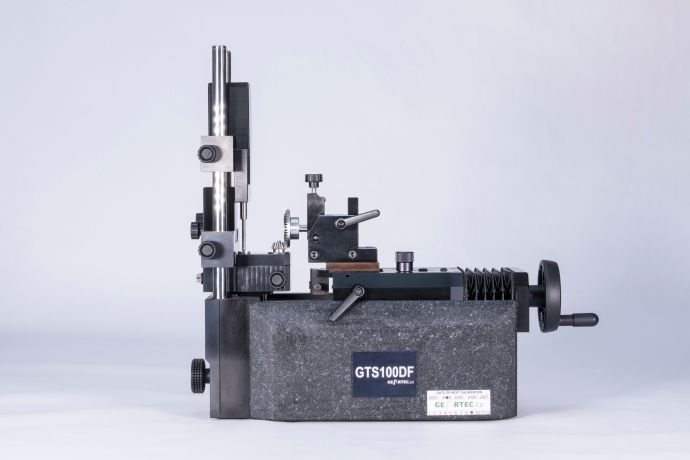

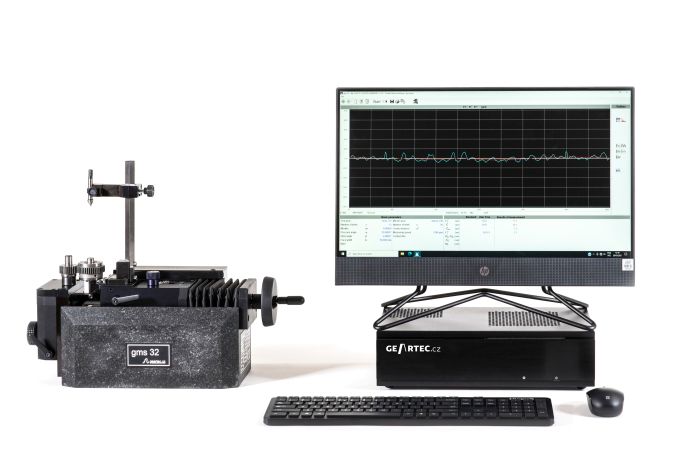

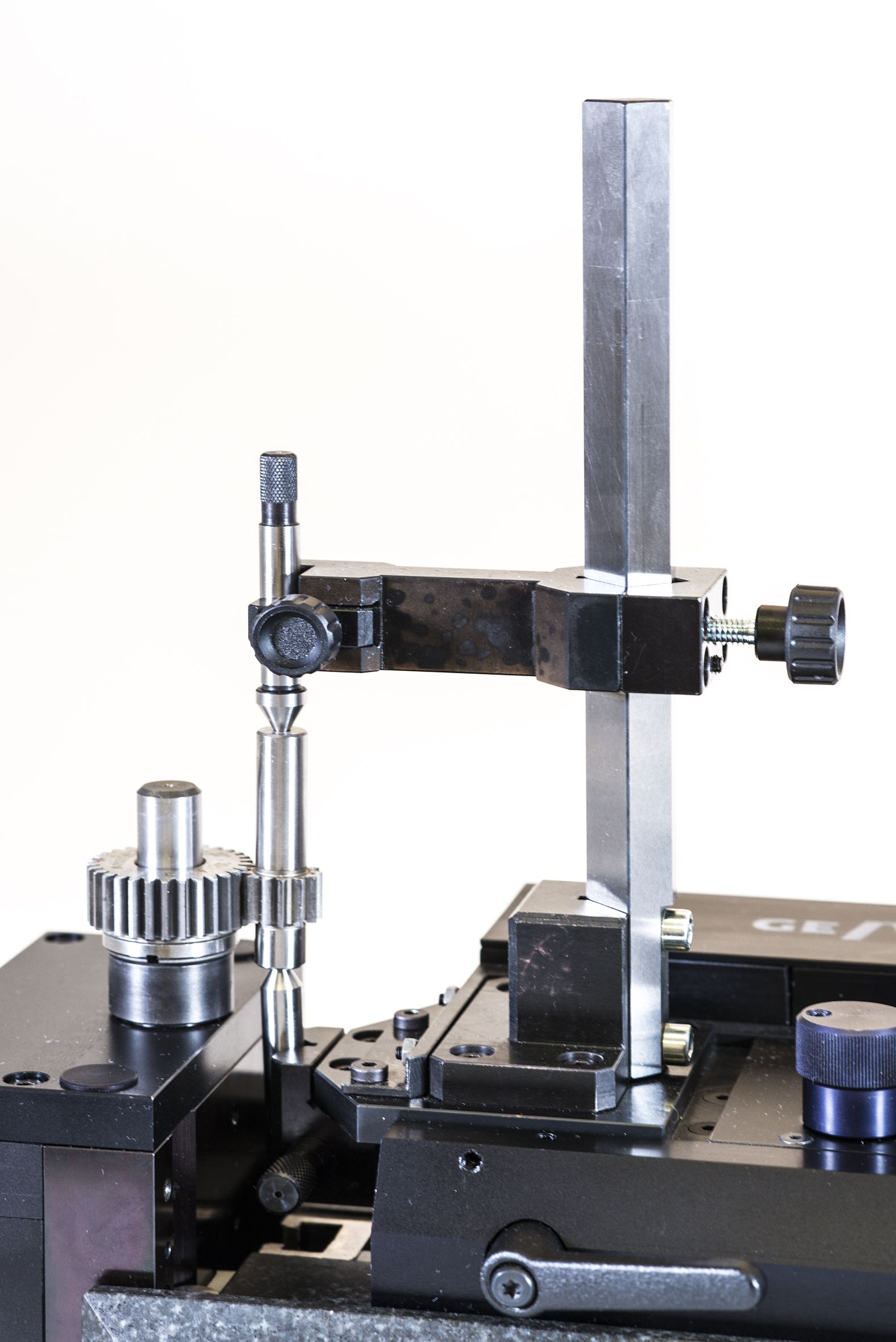

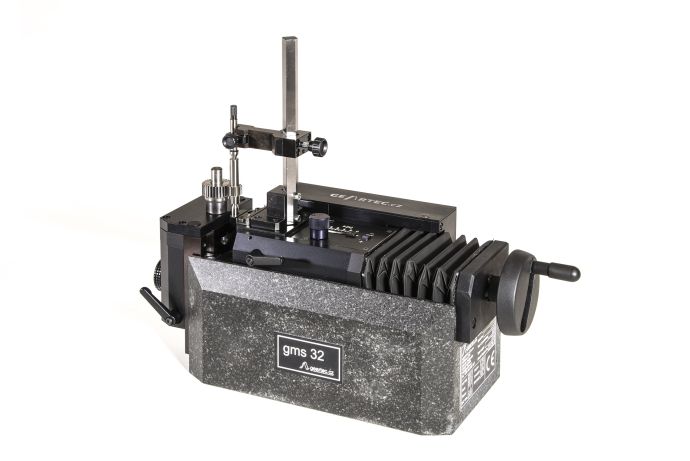

GTS100DF - Precision Gear Inspection Made Simple

The GTS100DF is a next-generation double flank gear roll inspection machine built to elevate your quality control to a new level. Designed for speed, precision, and absolute reliability, it delivers outstanding inspection performance across a wide range of applications. From ultra-small gears starting at just 0.5 mm up to 100 mm in diameter, the GTS100DF handles steel, plastic, and advanced materials with ease—making it the ideal solution for both high-volume production lines and demanding precision manufacturing.

With an exceptional repeatability of 1 micrometer, the GTS100DF provides results you can trust, cycle after cycle. Its powerful yet intuitive software comes with a permanent license, eliminating ongoing subscription costs and ensuring full ownership from day one. Fully digital and Industry 4.0 ready, the system supports OPC UA communication for effortless integration into smart factory and automated production environments.

Thanks to a comprehensive portfolio of accessories, the GTS100DF can be precisely configured to match your specific inspection requirements—without compromising simplicity or cost efficiency. Whether you are inspecting micro gears, plastic components, or complex geometries, the GTS100DF delivers uncompromising accuracy, flexibility, and performance, setting a new benchmark in double flank gear inspection.

Contact us if you'd like to learn more

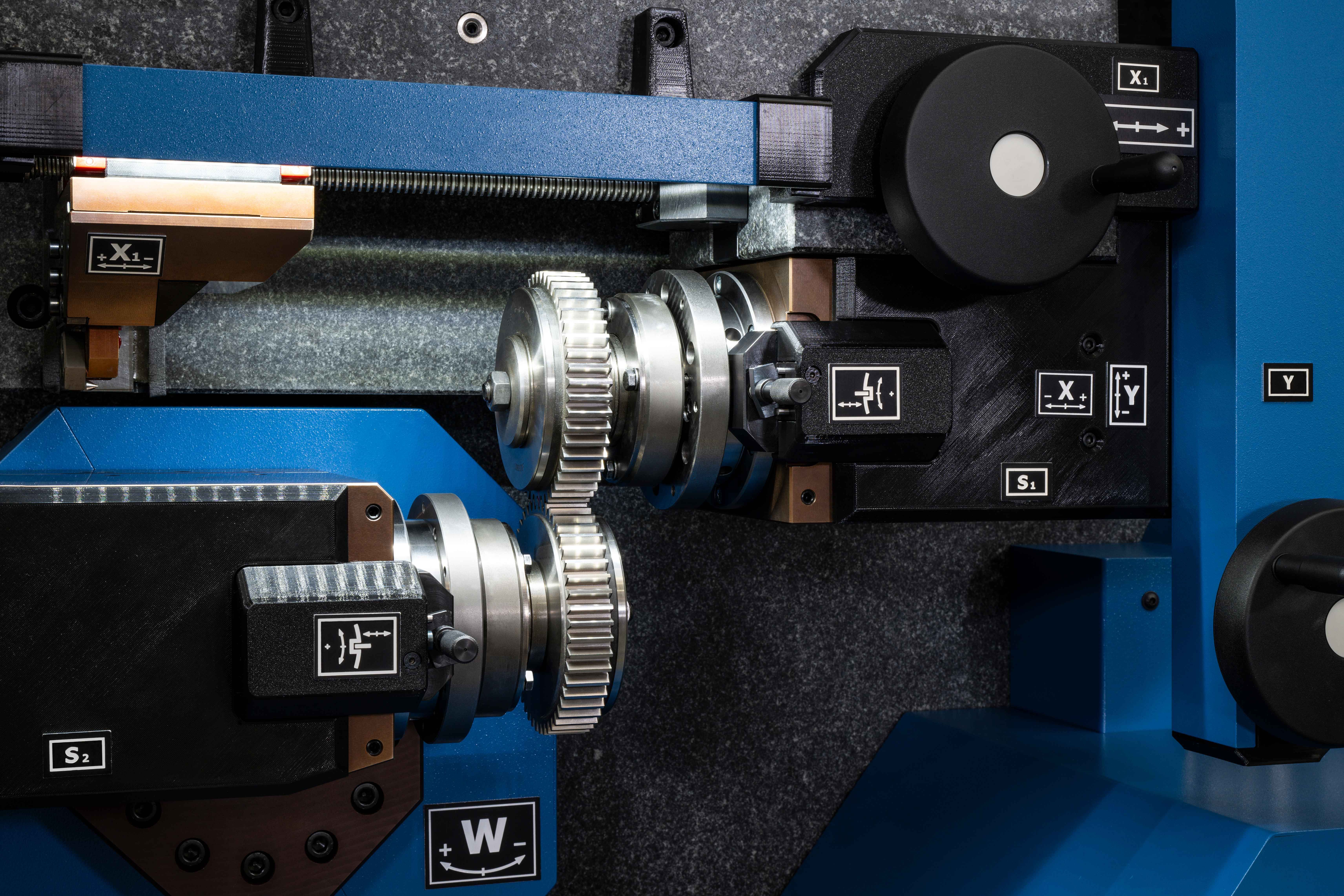

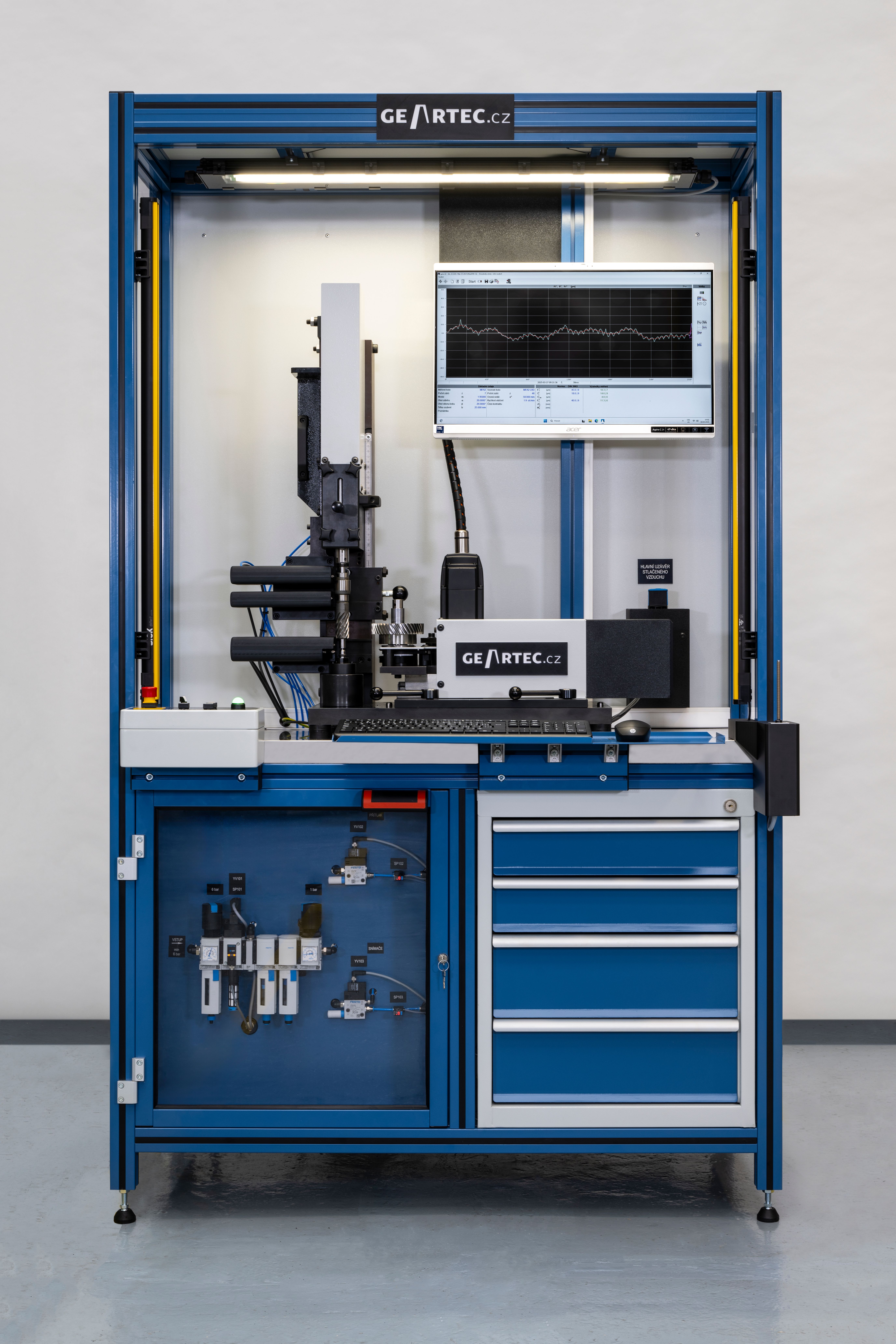

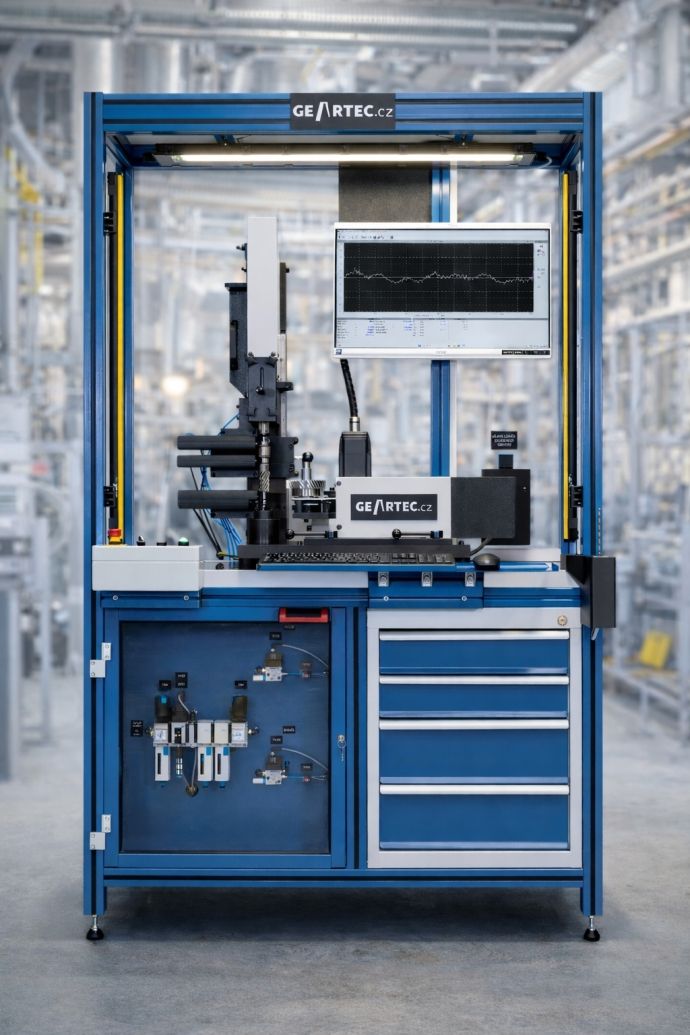

Precision Perfected: Smarter Semi-Automated Gear Inspection

Experience the ideal combination of automation, precision, and operator control with our advanced semi-automated gear inspection machine. Designed to optimize your quality assurance process, the system features automatic gear meshing and precise positioning, enabling fast setup, repeatable measurements, and a significant reduction in operator effort—so your team can focus on what matters most.

Engineered for exceptional performance, the machine delivers automated roundness and eccentricity measurement with outstanding 1-micrometer repeatability, allowing you to identify even the smallest deviations with confidence. Its capability for 100% gear inspection ensures uncompromising quality control, whether you’re validating prototypes or running high-volume production.

Built with operator safety, intuitive operation, and long-term reliability in mind, this inspection solution is the perfect choice for manufacturers who demand accuracy, efficiency, and consistency in a single platform. Upgrade your gear inspection process with a solution that combines smart automation and proven precision—measurement after measurement.

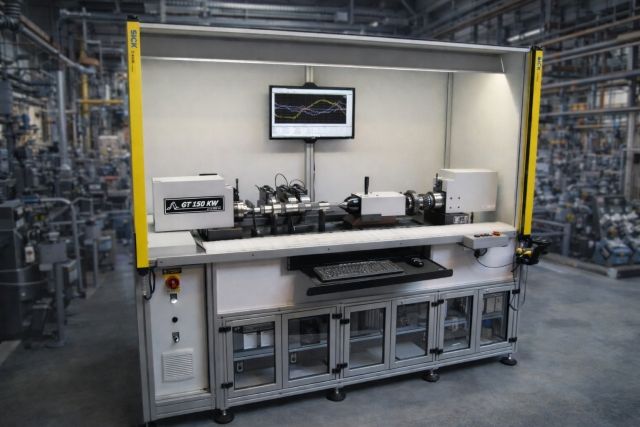

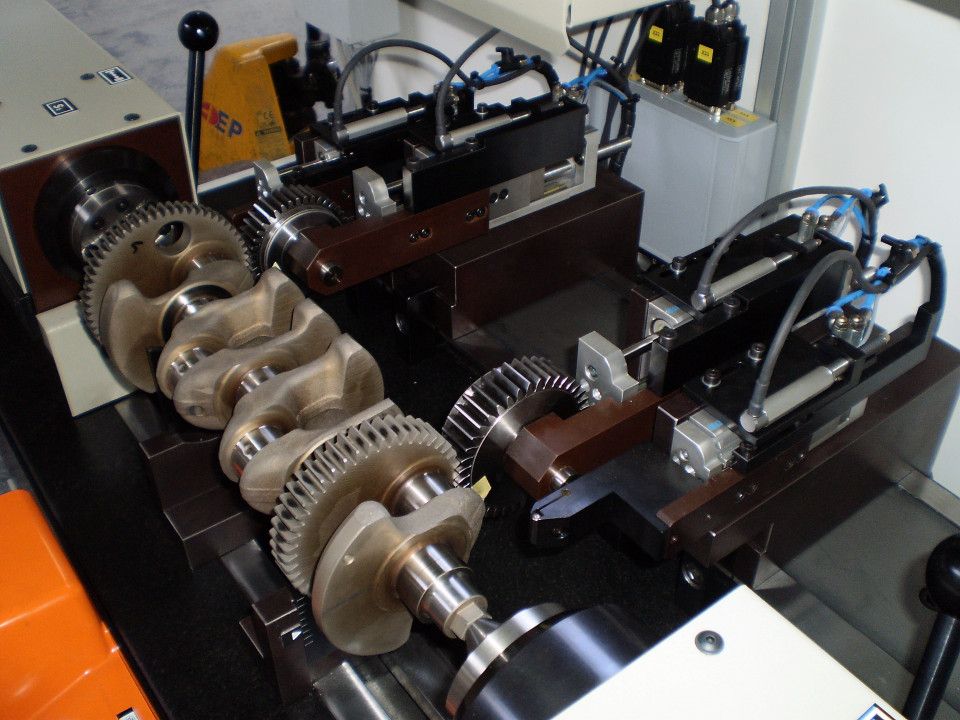

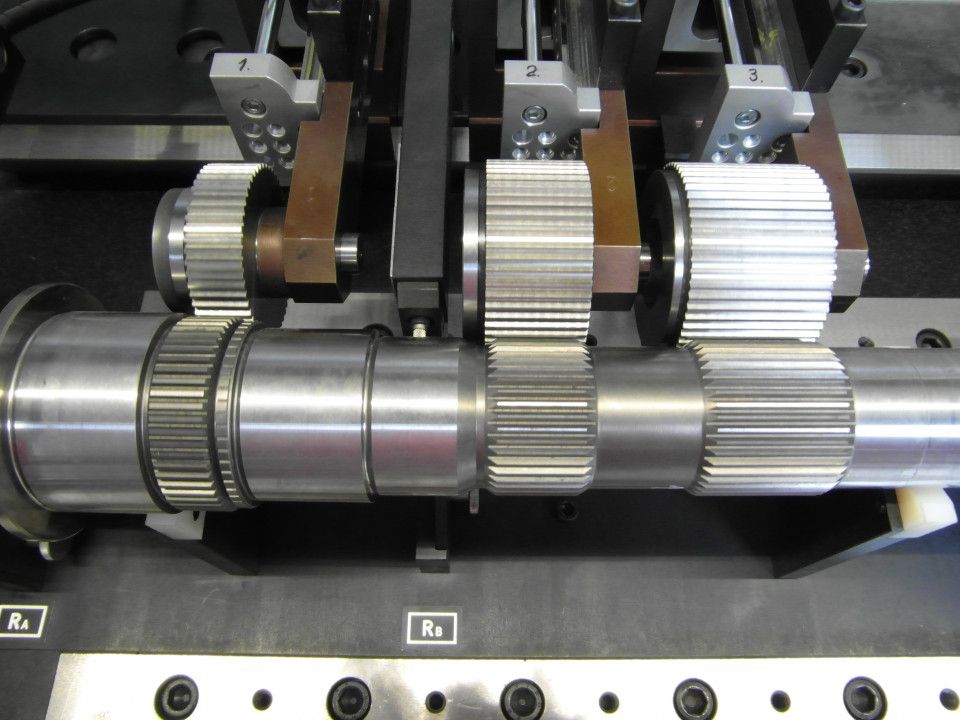

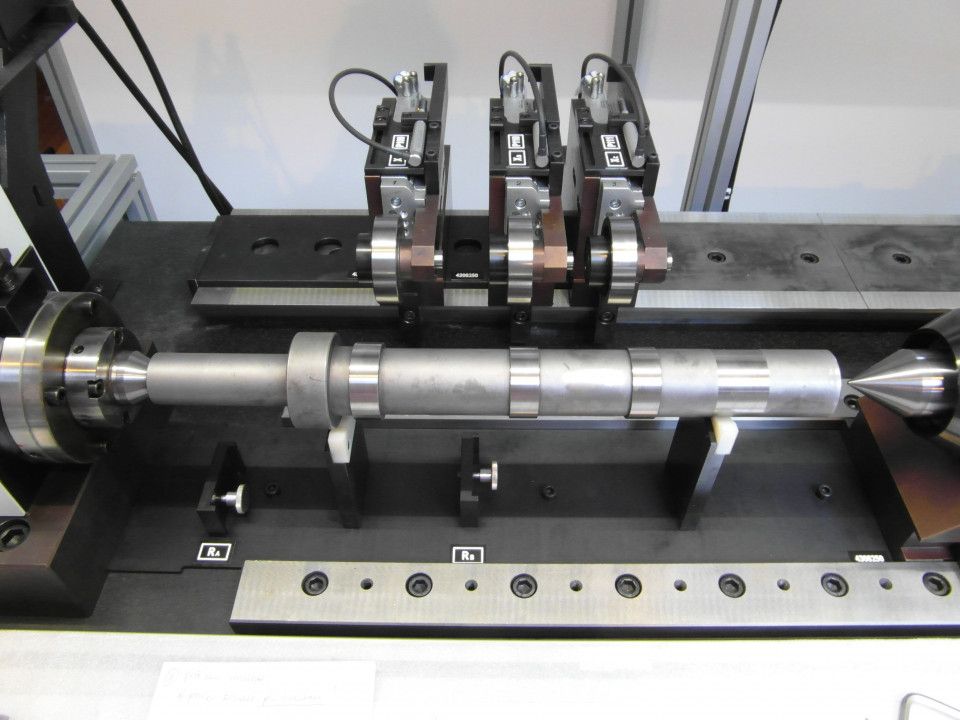

Integrated Inspection Solution for High-Accuracy Crankshaft Measurement

Our advanced inspection solution is purpose-built for the high-precision measurement of crankshafts and complex multi-gear assemblies, where accuracy, speed, and repeatability are critical. Designed to meet the rigorous demands of modern manufacturing, the system enables the simultaneous measurement of multiple gearings, significantly reducing inspection time while ensuring consistent, highly accurate evaluation of even the most geometrically complex components. This makes it an ideal solution for automotive powertrain production, aerospace applications, and demanding industrial environments.

At the core of the system is a comprehensive measurement concept that combines integrated roundness and eccentricity analysis of shafts with advanced gear inspection capabilities. With micrometer-level repeatability, the solution detects the smallest deviations in geometry, ensuring early identification of defects and full compliance with tight tolerance requirements. Each measurement cycle delivers precise, repeatable results—supporting both 100% inline inspection and advanced quality assurance strategies.

Engineered for long-term reliability, the system features a robust mechanical design that guarantees exceptional stability and measurement accuracy, even under continuous operation in high-volume production settings. High-quality components, rigid construction, and optimized sensor integration ensure consistent performance over the entire service life of the machine.

Fully Industry 4.0 ready, the inspection solution supports seamless digital integration into smart manufacturing ecosystems. It enables real-time data exchange, full part traceability, and advanced process monitoring, allowing manufacturers to optimize production workflows, improve transparency, and make data-driven decisions. When precision, efficiency, and reliability are non-negotiable, this inspection technology delivers measurable advantages—every cycle, every part.
